ATOM API Guide

About This Guide

ATOM is a Restconf and YANG server from a Northbound Integration point of view.

Configuring/Customizing ATOM is largely achieved by using Restconf APIs against ATOM platform Yang models, Service Models and device models.

Knowledge of YANG and Restconf are required to work with ATOM APIs.

ATOM implements (largely) the following versions

• RESTCONF: https://tools.ietf.org/html/rfc8040

• YANG 1.1: https://tools.ietf.org/html/rfc7950

There are two ways customers can integrate with ATOM.

• Using YANG and ATOM APIs

• Using Python SDK for Services And Device models development against ATOM APIs.

This document presents a high level view of ATOM APIs. Each Subsystem of ATOM, such as, Services Development, Device Driver Development, Workflows, Monitoring/Telemetry etc come with their individual detailed documentation.

Intended Audience

This document is meant to be used by the system integrators, IT administrators, and developers who want to develop client applications using ATOM.

Support

If you are facing any issues while using the ATOM APIs, please send a mail at support @anutanetworks.com or raise a ticket on the Support site.

1

Understanding ATOM APIs

Introduction

ATOM enables customers and partners to develop their own device, service and operational models for specific network service delivery needs. ATOM API implements a RESTful HTTP workflow, using HTTPS Requests to the server and retrieving the information they need from the server’s Responses. Any client application that can send HTTP Requests over a secure channel using SSL through the port number 443 is an appropriate tool for developing RESTful applications with the ATOM API. The RESTCONF protocol operates on a conceptual data store defined with the YANG data modeling language. The server lists each YANG module it supports using a structure based on the YANG module capability URI format.

The conceptual data store contents, data‐model‐specific operations, and notification events are identified by this set of YANG module resources. All RESTCONF content identified as either a data resource, operation resource, or event stream resource is defined in YANG.

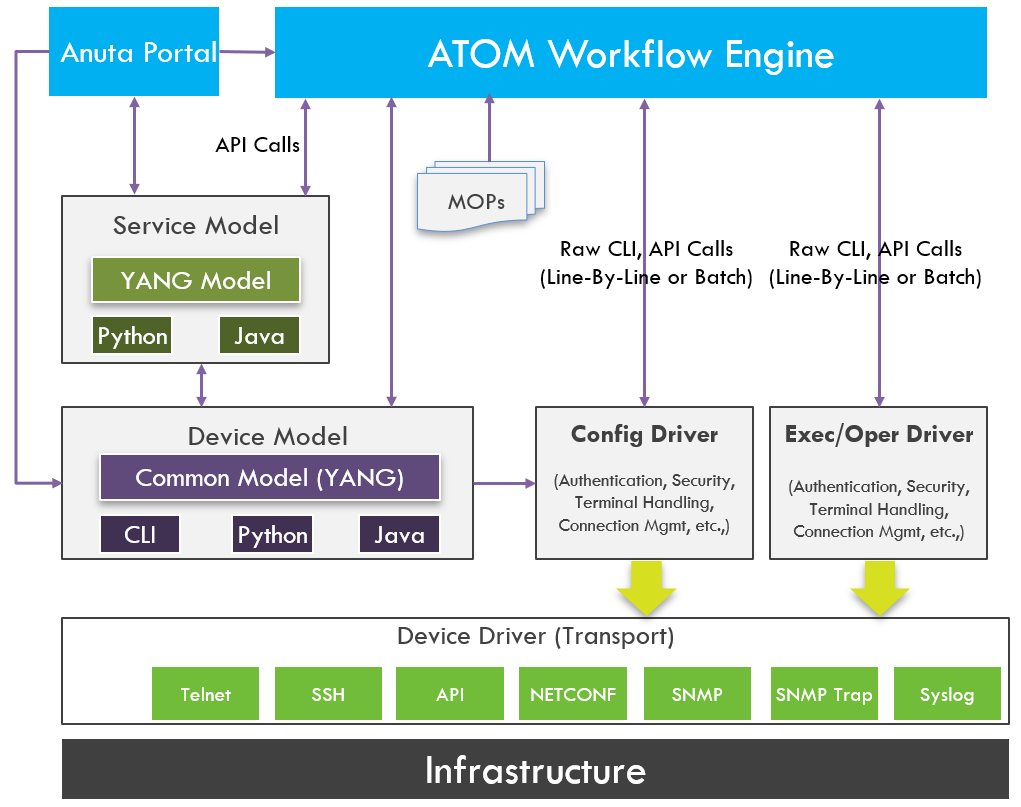

ATOM Architecture

ATOM’s model‐driven, layered, and abstraction approach helps in delivering vendor‐neutral, extensible, and maintainable services.

For developing new services or device plugins customers can use ATOM Python SDK. Below snippet shows API interactions happening at different levels.

4

ATOM Data Model

ATOM platform configuration is largely captured as YANG models. Tasks, Scheduling, Users, tenants, Services, Device models, Monitoring Infra, Actions, RBAC rules, Device Compliance Rules, Events, Notifications and so on are some of the concepts modelled with YANG 1.1.

With this arrangement coupled with Restconf as the public API it is relatively easy for customers to understand how to integrate with ATOM. The yang models can be downloaded from the server. ATOM UI also gives a schema browser and has Swagger integration to help navigate these models.

• Device and Service Models

ATOM contains an abstract device model and numerous vendor devices are already mapped to this abstract model. More vendor device support can be added by supplying the relevant device package. A device package can be developed using ATOM Python SDK.

If the device supports YANG models (native or Openconfig) ATOM can use those models instead of its abstract model.

It is also possible to bypass the YANG model layer and use the device native cli or REST API directly.

In addition to the device models, popular services such as L2VPN, L3VPN, Routing, ACLs etc. are available out‐of‐the‐box.

• Customized Operations

Using ATOM Data Model, the administrator can define highly customized operations that will be executed on a multi‐vendor install base. Any network configuration task can be defined as an operation. Operations can be executed via API or UI with ease.

• Transaction support with commit/rollback

ATOM supports transactional operations both on the model itself as well as the devices.

ATOM supports a candidate configuration concept using which customers can stage their datastore(device configuration) changes until ready to commit. Upon commit, the staged changes will be merged to the running configuration datastore and devices are configured.6

API Entities

The API model includes these programmatic entities:

• API Objects

• API Methods

API Objects

API objects represent the ATOM entities that are modelled in YANG. Programmatic access is determined by the user permissions and access settings (which are configured by your organization’s system administrator). Most of the objects accessible through the API are read‐write objects. However, there are a few objects that are read‐only. To access the API objects, download the latest SDK containing all the objects and models expressed in YANG.

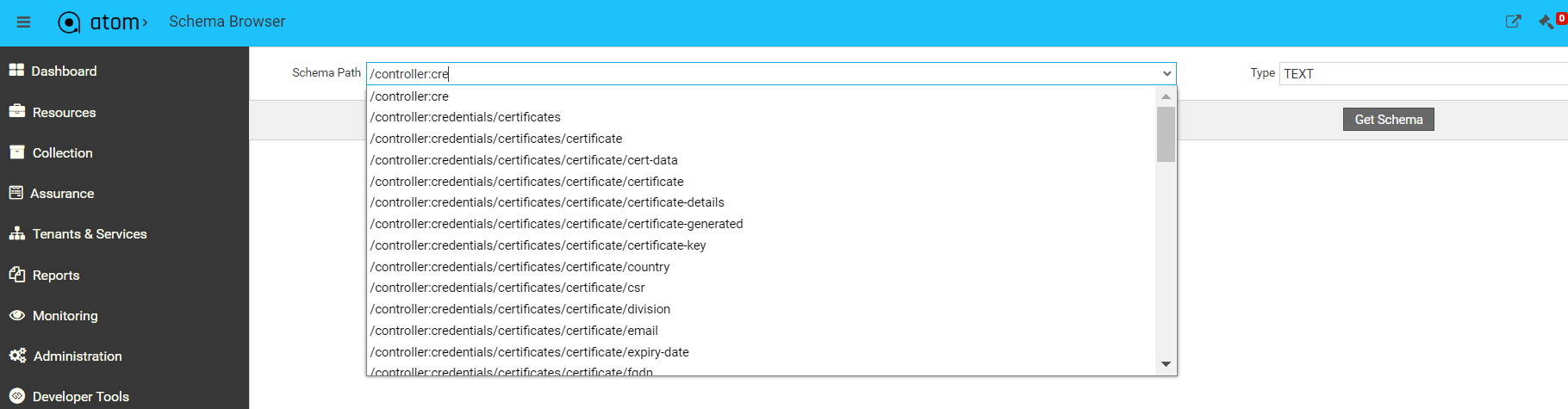

Schema Path

The schema path leads you to identify a specific target in the Data Model tree and contains the following attributes:

• A parent object

• Relative name that uniquely identifies the object among its siblings

• Schema path name that uniquely identifies the object globally

Example

/controller:credentials/credential-sets/credential-set

Instance path

The relative path identifies an object from its siblings within the context of its parent object.

Example

/controller:credentials/credential-sets/credential-set=XYZ

where XYZ is the name of a Credential Set

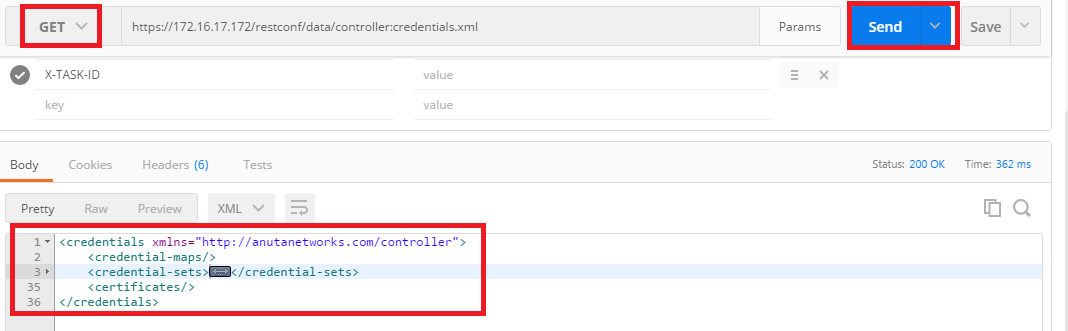

Object Representations

Clients must be able to send Requests and receive Responses from the objects by using either the XML or JSON data serialization formats.

The format for both the Request and Response can be specified by adding an .xml or .json extension to the Request URI or Content‐Type header and the Accept header.

Format	Content-Type header	Accept header	Extension
JSON	application/json	application/json, application/yang-data+json	.json
XML	application/xml	application/xml, application/yang-data+xml	.xml

API Methods

ATOM supports the standard RESTCONF methods ‐ PUT, PATCH, GET, POST, and DELETE. The base URL RESTCONF based operations is https://<server‐ip>/restconf

HTTP Method	Operation Type	Description
GET	Retrieve	Retrieves or lists the representation of an existing object
POST	Create	Create an object
PUT	Update	Modifies the existing object
PATCH	Update	Applies the delta instead of replacing the entire object NOTE: ATOM supports only the plain “PATCH”method
DELETE	Delete	Deletes an existing object

URL Encodings

The target resource specified in a RESTCONF operation should adhere to the rules specified in the specification. For knowing the rules needed to encode a key value, refer RESTCONF documentation: https://tools.ietf.org/html/rfc8040#section-3.5.3

Response codes

HTTP Status Codes returned to the client in response to the request sent to the ATOM server.

Status Code	Status Description
200 OK	Successful
201 Created	The request is valid. The requested object was created.
202 Accepted	The request is valid and a task was created to handle it. Response contains the task object which can be used to monitor the task progress.
204 No Content	The request is valid and was completed. The response does not include a body.
400 Bad Request	The request body is malformed, incomplete, or otherwise Invalid.
401 Unauthorized	An authorization header was expected but not found.
403 Forbidden	The requesting user does not have adequate privileges to access one or more objects specified in the request
404 Not Found	One or more objects specified in the request could not be found in the specified container
405 Method Not Allowed	The HTTP method specified in the request is not supported for this object.
406 Not Acceptable	The requested resource is only capable of generating content which is not acceptable according to the Accept Headers sent in the request.
409 Conflict	The requested object or resource is in conflict.
415 Unsupported Media Type	The request entity has a media type which the server or resource does not support.
500 Internal Server Error	The request was received but could not be completed because of an internal error at the server

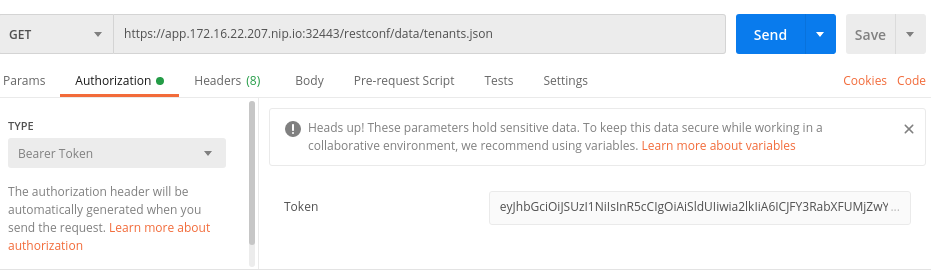

Authentication

ATOM supports bearer token based authentication. You would need a client_id, client secret, username and password to obtain a token. Your administrator can provide the client_secret by logging to ATOM access manager at <ATOM_URL>/auth with admin credentials. Navigate to Clients -> atom -> Credentials and copy the Secret. If a new client for API access is preferred, follow the steps in New Client

Token is obtained by calling the REST API by setting client_secret obtained above, and your username and password and extract the id_token from the output.

Example:

curl -L -k -X POST ‘<ATOM_URL>/auth/realms/system/protocol/openid-connect/token’ -H ‘Content-Type: application/x-www-form-urlencoded’ –data-urlencode ‘grant_type=password’ –data-urlencode ‘scope=openid’ –data-urlencode ‘client_id=<CLIENT_ID>’ –data-urlencode ‘client_secret=<CLIENT_SECRET>’ –data-urlencode ‘username=<USERNAME>’ –data-urlencode ‘password=<PASSWORD’ Output: {“access_token”:”eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJFY3RabXFUMjZwYlU5dDdHcHh3ZWp6YV9KaENhV1V3S3hJRS1JSzVKX0RnIn0.eyJleHAiOjE2MTQzMDkyNjQsImlhdCI6MTYxNDMwNTY2NCwianRpIjoiMTA0MGI0N2UtMzMwNi00ODc0LTlkNGEtNGU0NTNmYTQ3N2YwIiwiaXNzIjoiaHR0cHM6Ly9hcHAuMTcyLjE2LjIyLjIwNy5uaXAuaW86MzI0NDMvYXV0aC9yZWFsbXMvc3lzdGVtIiwiYXVkIjoiYWNjb3VudCIsInN1YiI6Ijk4NmU5MDMyLTI0Y2YtNDdhOS1hMWY5LTFjNzJiY2RjOGE5MiIsInR5cCI6IkJlYXJlciIsImF6cCI6ImFub3RoZXItY2xpZW50Iiwic2Vzc2lvbl9zdGF0ZSI6Ijk3MDlhZjVhLWI0ZTYtNDYwNy1hNjZjLWRmMWJmZDE4NzcxYyIsImFjciI6IjEiLCJyZWFsbV9hY2Nlc3MiOnsicm9sZXMiOlsib2ZmbGluZV9hY2Nlc3MiLCJ1bWFfYXV0aG9yaXphdGlvbiJdfSwicmVzb3VyY2VfYWNjZXNzIjp7ImFjY291bnQiOnsicm9sZXMiOlsibWFuYWdlLWFjY291bnQiLCJtYW5hZ2UtYWNjb3VudC1saW5rcyIsInZpZXctcHJvZmlsZSJdfX0sInNjb3BlIjoib3BlbmlkIHByb2ZpbGUgZW1haWwiLCJlbWFpbF92ZXJpZmllZCI6ZmFsc2UsInByZWZlcnJlZF91c2VybmFtZSI6ImFkbWluIiwiZ2l2ZW5fbmFtZSI6IiIsImZhbWlseV9uYW1lIjoiIiwiZW1haWwiOiJhZG1pbkBhdG9tLmxvY2FsIn0.Y6Y7HaF5-Wqr7MlK_Dh9MqZuWTMPjTJ7JNOGGc7teIJm0e2I3JXokXURbZlCpolEYjdGV2Pw12l0Lj-G1l03_A–PhdzPRinrEf0wbX3JHk8DpIoe9vKykxTMi-PmEDkYzCIuGLTBx7GTombuft8sJ2VJejs-uoTshWd6lAW289efRQXmn_bFQhAuM_dDKHxGBOZReapf6FhMo3qDSg2Rg4mvn7_R7X7rYMy0ko0tFn4hNCsEx-U1cbA1roH-b3GAKe_IsNtW6aneaMqegrYpNYluYvMkuY_MDXz8eX9GHSYKg50mdeVbgh3_EFHhXQ3hDQMRej3ataWIC0zC4u6AQ”,”expires_in”:3600,”refresh_expires_in”:1800,”refresh_token”:”eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJhMzhkNTc1YS0zYTg3LTQ5Y2YtYTcwOS0xOGFlYjcxZGViYmIifQ.eyJleHAiOjE2MTQzMDc0NjQsImlhdCI6MTYxNDMwNTY2NCwianRpIjoiMDVjYTVmMjItNThkZi00NzUwLWE2MGMtZDBmNDdmZDAyMmNiIiwiaXNzIjoiaHR0cHM6Ly9hcHAuMTcyLjE2LjIyLjIwNy5uaXAuaW86MzI0NDMvYXV0aC9yZWFsbXMvc3lzdGVtIiwiYXVkIjoiaHR0cHM6Ly9hcHAuMTcyLjE2LjIyLjIwNy5uaXAuaW86MzI0NDMvYXV0aC9yZWFsbXMvc3lzdGVtIiwic3ViIjoiOTg2ZTkwMzItMjRjZi00N2E5LWExZjktMWM3MmJjZGM4YTkyIiwidHlwIjoiUmVmcmVzaCIsImF6cCI6ImFub3RoZXItY2xpZW50Iiwic2Vzc2lvbl9zdGF0ZSI6Ijk3MDlhZjVhLWI0ZTYtNDYwNy1hNjZjLWRmMWJmZDE4NzcxYyIsInNjb3BlIjoib3BlbmlkIHByb2ZpbGUgZW1haWwifQ.XZ4QnaKY_SRKxQdmQTN72PLiTX-g_Ppwmk7FCi9Aegk”,”token_type”:”Bearer”,”id_token”:”eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJFY3RabXFUMjZwYlU5dDdHcHh3ZWp6YV9KaENhV1V3S3hJRS1JSzVKX0RnIn0.eyJleHAiOjE2MTQzMDkyNjQsImlhdCI6MTYxNDMwNTY2NCwiYXV0aF90aW1lIjowLCJqdGkiOiI0YjUyODgxMS01OTMzLTRiY2YtOGU3Yy03MWViYjc1MDQyYTEiLCJpc3MiOiJodHRwczovL2FwcC4xNzIuMTYuMjIuMjA3Lm5pcC5pbzozMjQ0My9hdXRoL3JlYWxtcy9zeXN0ZW0iLCJhdWQiOiJhbm90aGVyLWNsaWVudCIsInN1YiI6Ijk4NmU5MDMyLTI0Y2YtNDdhOS1hMWY5LTFjNzJiY2RjOGE5MiIsInR5cCI6IklEIiwiYXpwIjoiYW5vdGhlci1jbGllbnQiLCJzZXNzaW9uX3N0YXRlIjoiOTcwOWFmNWEtYjRlNi00NjA3LWE2NmMtZGYxYmZkMTg3NzFjIiwiYXRfaGFzaCI6IlJsV2Z1VVlCWWhsWXppc05IdTc3SmciLCJhY3IiOiIxIiwiZW1haWxfdmVyaWZpZWQiOmZhbHNlLCJwcmVmZXJyZWRfdXNlcm5hbWUiOiJhZG1pbiIsImdpdmVuX25hbWUiOiIiLCJmYW1pbHlfbmFtZSI6IiIsImVtYWlsIjoiYWRtaW5AYXRvbS5sb2NhbCJ9.GZ9eYBaCtGesAGGvhZPBiEQ85Vtf6Ae3dP1tEVUUbZBKK_Su_B49TYO1Zw9_96hR91YHp1_4xn-n1MEDrd54gHCtAmdZi4Woj9X9QUAWFLchQ0n2qVI0DdE4MXUTfnXopmVkGBxQSDSXoom8Fj9QiEBkmKM25xIFMDMGoXz75e3VXu8hHUDfCPFP2Tj5Y-oEC_s8pGbv7P7e5GLMpUG15F82_JE_VOUcGN2BbTDolwchHD53mNRaJ2MwTIpsfQGtZkghCyulCXXgh-k7AE2jkS-BQVXB392DwgKNyDxONxdAaxNOB-wqBtNwwfXwU9sQGCh6sgo6dPr8rwroPoxvVw“,”not-before-policy”:0,”session_state”:”9709af5a-b4e6-4607-a66c-df1bfd18771c”,”scope”:”openid profile email”}

Extract the id_token from the above output.

Example:

$ export ID_TOKEN=<ID_TOKEN> $ curl -L -k -X GET ‘<ATOM_URL>/restconf/data/tenants.json’ -H “Authorization: Bearer $ID_TOKEN” {“controller:tenants”:{“@”:{“shared-with”:”system.*”},”tenant”:[{“@”:{“shared-with”:”system.*”},”sub-tenancy-enabled”:false,”name”:”system”,”description”:”system tenant”,”dry-run”:false},{“@”:{“shared-with”:”system.*”},”sub-tenancy-enabled”:false,”name”:”acme”,”dry-run”:false},{“@”:{“shared-with”:”system.*”},”sub-tenancy-enabled”:false,”name”:”Coke”,”dry-run”:false},{“@”:{“shared-with”:”system.*”},”sub-tenancy-enabled”:false,”name”:”Pepsi”,”dry-run”:false}]}}

New Client

If a new client for API access is desired, follow these steps.

• Login to the ATOM access manager using admin credentials at https://<ATOM_URL>/auth/ (e.g:https://app.10.10.7.30.nip.io:32443/auth)

• Navigate to Clients, export the client atom. It would download a file

• Click on ‘Create’ on the same page (Clients) and import the previous downloaded file

• Change the client name to appropriate name

• Click Save, it should show the new Client page.

• (Optional) Update ‘Valid Redirect URLs’ to the proper callback url.

• Select ‘Credentials’ and note down the Secret, this is going to be client secret.

• Edit the oauth2-proxy deployment file by ssh to master node

  • Execute kubectl edit deployment -n atom oauth2-proxy

  • Add https://<ATOM_URL>/auth/realms/system=<client_name> (e.g:https://app.10.10.7.30.nip.io:32443/auth/realms/system=newclient) under OAUTH2_PROXY_EXTRA_JWT_ISSUERS. If there are entries already, add the new one after a comma.

Multi Tenancy in ATOM

ATOM supports multi tenancy by attaching the tenant owning an object as part of the overall object key. There are 2 attributes attached to all objects:

• Owner

• shared-with

‘system’ is always the root tenant.

Sub Tenancy is also supported.

The immediate child tenants of ‘system’ are called top level tenants.

Data of one top level tenant is completely isolated from another top level tenant.

Data of ‘system’ can be shared with top level tenants.

If tenants want to share data with ‘system’, it is possible too.

A sample hierarchy can be:

system

Acme

North

South

Campus-1

Company-2

Company-3

User guide has more details on Multi Tenancy Support in ATOM.

For the API interaction purposes, there is little change to the APIs to handle Multi Tenancy.

All APIs work the same when MT is enabled or not, for the most part. But, when sub tenants are involved and sharing of resources is required, sometimes, a client has to clarify which ‘owner’ of an object is being referenced. In those cases, the client program has to specify the ‘owner’ of objects as part of the payload to the APIs.

Multi Tenancy Specifics can be explained with the help of following examples:

When Multi Tenancy is disabled

This is the case when a client deploys ATOM on-premise.

In this deployment client assumes ‘system’ as self.

All the data is owned by ‘system’ [which is ‘client’ itself].

In this case there is no difference between MT and non-MT flavors of the APIs.

The rest of this document mainly describes Non-MT APIs.

Single Tenant under ‘system’

System

Acme

This scenario can happen in two cases.

In ATOM saas, when a deployment is dedicated to one client (Acme in the above example).

Or, when Acme deploys on-prem, enables Multi Tenancy and creates a top level tenant ‘Acme’.

In this scenario, there can be data sharing between system and Acme, mostly from system to Acme, to a lesser extent from Acme to system.

ATOM Deployment with Multiple Tenants but no Sub tenancy

System

Tenant-1

Tenant-2

This is the predominant style ATOM is deployed in SAAS.

But, a client can use this style in their on-prem too if they wish. Let us call this Customer SAAS, for lack of a better term.

We need to understand an important difference between ATOM SAAS and Customer SAAS.

‘Anuta’ is synonymous with ‘system’ in ATOM SAAS and

Customer is synonymous with ‘system’ in Customer SAAS.

Anuta employees are system users in SAAS and would not have access to tenants data (barring a few data categories). But, customer may be ok to let designated customer users see all the tenants data in their deployment.

ATOM Deployment with Multiple Tenants And Sub tenancy

In this scenario , due to sub tenancy and sharing, there is potential for duplicate data unless you clarify which tenant data is being referenced. Whenever this clarity is to be provided it reflects in the API payloads (that is where you specify which tenant data you mean to use).

Transactions Support in ATOM

ATOM RESTCONF implementation supports transactions on all the data mutations and remote procedure calls (rpcs, actions). All the device operations of one transaction are done as one logical atomic operation. Commit, rollback, and retry operations are supported.0

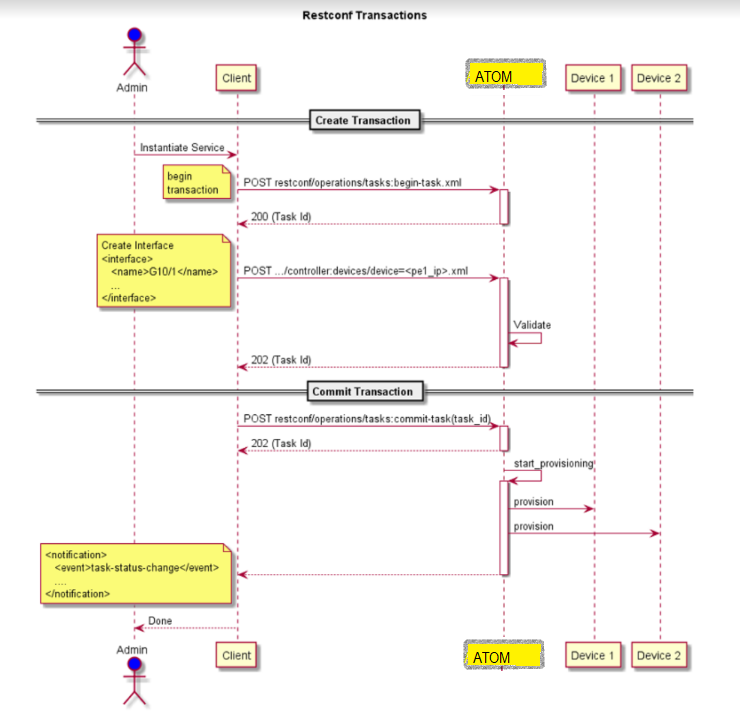

A sample transaction is illustrated below:

–

• A transaction is initiated by calling the ‘begin-task‘ protocol operation which returns a taskID.

• All subsequent calls carry a header ‘X‐TASK‐ID‘ with the above taskID.

• When the client is ready to commit the transaction, it calls ‘commit-task‘ operation.

  • Progress of the task can be polled or notifications can be subscribed.

  • In case of any error, the commit can be retried by calling ‘commit-task’ again.

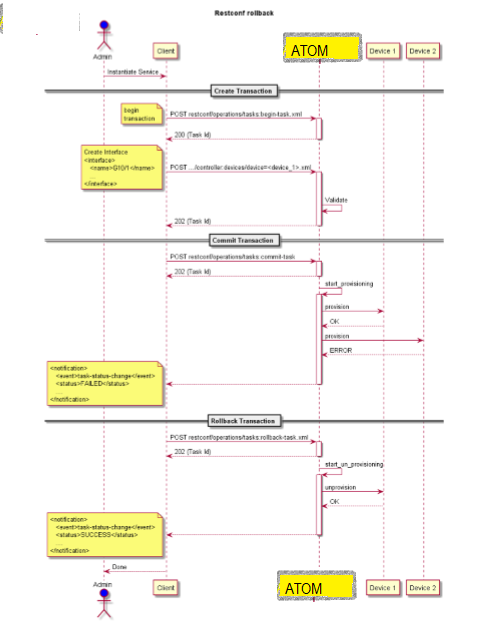

  • To rollback, the client calls ‘rollback-task’.

ATOM computes compensating commands for devices to which commands were sent in the transaction previously and applies the compensating commands to rollback. If any errors occur during the rollback, rollback can be retried calling ‘rollback-task’ again.

• • If the rollback is unsuccessful, manual intervention may be required.

• Clients can monitor the Task detail to learn the progress of provisioning including any successful or failed device configuration attempts and commands.

#	Description	Client Request	Output	Notes
1	A transaction is started by invoking ‘begin‐task’ rpc	POST /restconf/operations/tasks:begin-task	<taskID>id</taskID> Example <taskID>6db7bfb2-930f-4257-98a7-7b01dd342e04</taskID>	This taskID should be used in all the subsequent operations that are required for this transaction. All the subsequent calls should include a header. X‐TASK‐ID = taskID Example X-TASK-ID = 6db7bfb2-930f-4257-98a7-7b01dd342e04
2	Create a VRF	POST /controller:devices/device=<device_id> With header X‐TASK‐ID = 6db7bfb2‐930f‐4257‐98a7‐7b01dd342e04 Payload: <vrf> <name>pevrf</name> <rd>100:1</rd> </vrf>	Status: HTTP/1.1 202 Accepted <taskId>6db7bfb2-930f-4257-98a7-7b01dd342e04</taskId>
3	Any additional CRUD operations Can be done using the same TASKId and the header.
4	Commit the transaction	POST /restconf/operations/tasks:commit-task.xml With Header X‐TASK‐ID = 6db7bfb2‐930f‐4257‐98a7‐7b01dd342e04	Status: HTTP/1.1 202 Accepted <taskId>6db7bfb2-930f-4257-98a7-7b01dd342e04</taskId>
5	Check the task details or wait for notification	POST restconf/operations/tasks:get-basic-task-detail.xml Payload: <taskId>6db7bfb2-930f-4257-98a7-7b01dd342e04</taskId>

Setting the transaction control options

Default transaction behavior is specified by the global transaction policy parameter and they can be overridden by per transaction policy parameters. Following parameters are available for clients to control the transaction behavior.

Option	Type	Description
do-not-send-commands-to-devices	boolean	Controls whether commands can be sent to the device. true: Commit the data to ATOM datastore only, but no configuration changes will be applied on the device. Useful for testing or in the case of a brownfield environment to create services. NOTE: This flag will be effective only if global dry‐run flag is set to false
validation‐scope‐type 1. COMMITTED_DATA 2.UNCOMMITTED DATA	enum	Controls whether data validation scope is across transactions. This flag is similar to isolation control in traditional RDBS systems, but limited to just data validation. Allowed values are “COMMITTED_DATA” and “UNCOMMITTED_DATA”. Validation will be done only using the committed data. Current transaction will not see changes done by other parallel transactions. This is the default selection. Data validation will be done using the uncommitted data. Current transaction will see changes done by other parallel transactions. This facility can be useful to assess the potential for transaction success/failure (for example during an approval process).
fail‐fast	boolean	flag to control if reference validation to be done on each payload submission. false will defer the validation until the commit-task call. This lets the client submit payloads in an out of order (reference wise).
command-sequence-policy	enum	Controls whether the generated commands need to be ordered according to the dependencies specified in the model. Allowed values are DEPENDENCY_BASED and NONE

Understanding the Task States

Each operation (create, delete or update) on any entity managed by ATOM generates a task in ATOM.

A task can be in different states of progress and each state is described in the table below:

Task States	% Completion	Task Status	Description
Yet to Begin	0%	NOT_STARTED	Execution not started
Running States	0% to 100%	IN_PROGRESS
		VALIDATED
		RESOURCES_RESERVED
		RESOURCES _PROVISIONED
		OPERATIONAL_RESOURCES_RESERVED	Resources allocated for service complete on ATOM
		OPERATIONAL_RESOURCES_UNRESERVED	Service allocated resources are unreserved on ATOM
	50%	SCHEDULED_FOR_PROVISION	Task is scheduled for provisioning
	50%	WAITING	Task is waiting for approval to provision configuration
END STATES
SUCCESS		COMPLETE	Operation completed successfully
ERROR		RESERVE_RESOURCES_FAILED
		RESERVE_OPERATIONAL_RESOURCES_FAILED	Resource allocation (config generation) for service is failed on ATOM
		PROVISION_RESOURCES_FAILED	Execution of configuration of service on the device failed or device connection timeout
		ERROR	Some of the error messages: Transaction rolled back. Rollback completed. Operation failed on agent: Database exception Internal exception Operation failed due to device connectivity issues during service provisioning

Handling Transaction Failures

If the transaction commit fails, the client can retry commit by invoking the ‘commit‐task’ operation again.

ATOM will apply only those commands that are not provisioned on the devices yet. If the client wishes to roll back the transaction, he can invoke ‘rollback‐task’ operation. ATOM undoes the provisioning done prior to the failure, thus restoring the device configuration to the original state. If the rollback also fails, the client retrieves the command set that needs to be applied on the device to restore the device configuration to its original state. The retrieved command set can manually be applied. Rollback can be retried by calling ‘rollback‐task’ operation again.

Using Query Parameters

Each RESTCONF operation allows zero or more query parameters to be present in the request URI. The specific parameters that are allowed depends on the resource type, and sometimes the specific target resource used, in the request.

Fields Query Parameter

The “fields” query parameter is used to optionally identify data nodes within the target resource to be retrieved in a GET method. The client can use this parameter to retrieve a subset of all nodes in a resource.

Example ‐ Retrieving all the entries of the target container

Let us assume that the target source is a Credential Set. To retrieve only the “name” and the “transport-type” fields of all the Credential Sets contained within ATOM, execute the following query:

/restconf/data/controller:credentials/credential-sets?fields=credential-set(name;transport-type)

Example ‐ Retrieving a specific entry of the container

Let us assume that the target source is a particular credential set of name “xyz”. To retrieve only the “name” and the “port number” fields of this credential set only, execute the following query:

/restconf/data/controller:credentials/credential-sets/credential-set=xyz?fields=name;port-number

Example ‐ Retrieving the child node of a node by providing path in the fields

Let us assume that the target source is “devices”. To retrieve the “name” and the “rd” fields of the “vrf” , a child node of the “device”:

/restconf/data/controller:devices.xml?fields=device/l3features:vrfs/vrf(name;rd)

Depth Query Parameter

The “depth” query parameter is an optional parameter which can be used to retrieve all the nodes under a resource till a specified hierarchy tree depth.

Example ‐ Retrieving all the entries of the target device for a specified depth

Let us assume that the target device is 172.16.1.130. Instead of retrieving complete tree under a device which can be of unknown depth, to retrieve only the interested childs available till a depth of 2 contained within ATOM, execute the following query:

/restconf/data/controller:devices/device=172.16.1.130.xml?depth=2

Pagination in APIs

While sending an API request to ATOM, you can specify the number of resources, and the specify the record, starting from which the entries should be returned in the response body. The request header should contain the “limit” and the “offset” keywords in the URL.

Using the Limit parameter

The limit parameter tells the API how many records should be retrieved from the entire set of results:

/restconf/data/controller:credentials/credential-sets.xml?limit=2

Using the Offset parameter

The “offset” parameter tells the API where to start returning records from the entire set of results.

Let us assume that there are four Credential Sets available in the following order:

• Set 1

• Set 2

• Set 3

• Set 4

Request: GET /restconf/data/controller:credentials/credential-sets.xml?limit=2&offset=1 Response: Set 2 Set 3

Request: /restconf/data/controller:credentials/credential-sets.xml?limit=2&offset=2 Response: Set 3 Set 4

Request: /restconf/data/controller:credentials/credential-sets.xml?offset=3 Response: Set 4

Invoking ATOM APIs from REST Client

Introduction

You can access the ATOM RESTCONF APIs using either the GUI (REST Client) or CLI methods (cURL). Clients use HTTP methods such as GET, POST, PUT, and DELETE to make Requests to the ATOM server. The base URL to perform a RESTCONF based operation is https://<server‐ip>/restconf, where <server-ip> is the IP address of the ATOM VM

Any client application that can send HTTP Requests over a secure channel by using SSL can be an appropriate tool for developing RESTful applications with the ATOM API.

Constructing the API Request

A typical RESTCONF request is outlined below:

For this example, the web browser is Google Chrome and the REST client is POSTMAN and the chosen REST operation is GET.

• Login to the VM using the administrator’s credentials

• Open the POSTMAN rest client tool and follow the steps as outlined below:

• In the Normal tab, go to the Enter request URL field, enter the URL in the following format.

Base URL : https://<server-IP>/restconf/data/controller.xml, where server-IP is the IP address of the ATOM server VM

• Click the Authorization tab, choose Bearer Auth as the Authentication type.

• Click the Headers tab to enter the following information:

Enter Content-Type and value as application/xml.

• Select the appropriate operation (any of the RESTCONF operations) to be performed on the API object.

• Click Send

• The resulting Response pattern is displayed in the text box.20

Example

You can retrieve all the child entities in Credentials as illustrated below:

• Open the POSTMAN client session in another browser.

• In the Authorization tab, enter the token obtained as specified in the Authentication.

• Click Send to send the request to the ATOM server.

• Click the Body tab to see the Response obtained for the Request

Generating the X-TASK-ID

Before performing any RESTCONF operation such as POST, PUT or DELETE, a transaction ID should be generated. This transaction ID or the task ID is used to poll ATOM for all the subsequent tasks; commit_task and get-details-task. For all the RESTCONF operations, except GET, follow these steps:

• Begin a transaction.

Request URI https://<VM-IP>/restconf/operations/tasks:begin-task.xml where VM-IP is the IP address of the ATOM VM Payload: Not Applicable Operation: POST Headers APIVersion: 2.0 Content-Type: application/xml Response 200 OK <taskId>613f5f45-dd29-4783-8527-7303756db312</taskId>

• Enter the value of the <taskId>, generated in the above step, in the X‐TASK‐ID field in the Headers tab.

• Commit the transaction.

Request URI https://<VM-IP>/restconf/operations/tasks:commit-task.xml where VM IP is the IP address of the ATOM VM Payload: Not Applicable Operation: POST Headers APIVersion: 2.0 Content-Type: application/xml X-TASK-ID: 613f5f45-dd29-4783-8527-7303756db312 Response 200 OK <taskId>613f5f45-dd29-4783-8527-7303756db312</taskId>

The task can be monitored by the following: https://<VM‐IP>/restconf/operations/tasks: get‐full‐task‐details.xml. Track task details by using above URL at that instance.

Request URI https://<VM-IP>/restconf/operations/tasks:get-full-task-detail.xml where VM IP is the IP address of the ATOM VM Payload:<taskId>613f5f45-dd29-4783-8527-7303756db312</taskId> Operation: POST Headers APIVersion: 2.0 Content-Type: application/xml Response 200 OK

Using the POST operation on the URL, you can periodically check progress until the task is completed.

Generating the Payload

From the “Schema Browser“, obtain the path of the entity which needs to be accessed. This will give the XML schema file of the YANG entity defined in ATOM.

Fill in the values for the fields described in the schema and send the request to ATOM as described in the section “Constructing the API Request “

Examples of ATOM APIs

This section contains different examples of restconf APIs for respective ATOM entity involved.25

Adding a Credential Set

Request URI https://<VM-IP>/restconf/data/controller:credentials/ credential-sets.xml? where VM_IP is the IP address of the ATOM VM Body: <credential-set> <enable-password> elastic </enable-password> <snmp-version> SNMPV2C </snmp-version> <cli-configcmd-time-out> 100 </cli-configcmd-time-out> <time-out> 10 </time-out> <username> admin </username> <port-number> 23 </port-number> <snmp-read-community-str> public </snmp-read-community-str> <config-retrieval-credential> true </config-retrieval-credential> <password> Elastic+123 </password> <transport-type> TELNET </transport-type> <name> restIOS </name> <cr-wait-time> 10 </cr-wait-time> <command-execution-wait-time> 500 </command-execution-wait-time> <number-of-retries> 10 </number-of-retries> <cr-time-out> 5 </cr-time-out> </credential-set> Response Status:202 Reason: Accepted

Onboarding a device to ATOM

Request URI https://<VM-IP>/restconf/data/controller:devices.xml? where VM_IP is the IP address of the ATOM VM Body: <device> <name> device139 </name> <management-mode> MANAGED </management-mode> <manage-by-management-station> false </manage-by-management-station> <credential-set> restIOS </credential-set> <id> 139device </id> <mgmt-ip-address> 172.16.1.139 </mgmt-ip-address> </device> Response Status:202 Reason: Accepted

Creating a vrf entry on the device

Request URI https://<VM-IP>/restconf/data/controller:devices/device=<device-id>/vrfs.xml? where VM_IP is the IP address of the ATOM VM where device-id is the unique ID with which device is onboarded to ATOM VM Body: <vrf> <name> vrf-internal </name> </vrf> Response Status:202 Reason: Accepted

Creating the Service

Request URI https://<VM-IP>/restconf/data/controller:services.xml? where VM_IP is the IP address of the ATOM VM Body: <l3service> <name>test_sub_intf2</name> <device-ip>172.16.1.139</device-ip> <interface-mode>sub-interface</interface-mode> <vrf>vrf2</vrf> <vlan-id>1002</vlan-id> <interface>FastEthernet8</interface> <ip-address>192.168.15.1</ip-address> <netmask>255.255.255.0</netmask> </l3service> Response Status:202 Reason: Accepted

Tools for API Development and Testing

Schema Browser

Schema Browser is a built-in tool of ATOM that provides a graphical view of the data model objects maintained in ATOM. You can query for the required object by providing the instance path of the target.

• Login to ATOM and navigate to Administration > System > General Settings > Developer Options

• Select the Enable Developer Mode option.

• After selecting this option, navigate to Developers Tools > Schema Browser

• In the search field, enter the path of the target to know the YANG schema of the object

• For example, to retrieve the schema file of the Credential Set object as shown below:

• • Enter the path of the target in the Schema Path box.

  • Select the path from the drop‐down menu.

The schema file of the object defined in the data model is displayed in the below pane.

Looking into the schema representation, you can now construct the payload that can be sent in the Request body of an ATOM API. This can be sent as an input in the Request Body while constructing an API query.

Swagger

You can now leverage the rich API set of ATOM using the Swagger UI integrated with ATOM.

• Enable the Developer Mode in ATOM as follows:

Navigate to Administration > System > General Settings > Enable-Developer-Mode

• Click RestConf APIs option by navigating to Developer Tools > RestConf APIs

• In the newly opened browser tab of APIs Documentation, Select API drop-down, select the entity modelled in ATOM and you would like to explore the corresponding API request, response patterns.

• • RESTCONF Data

Select this option to view the APIs of the configuration data of the end points modelled in YANG

• • RESTCONF RPC

Select this option to view all the APIs of the RPCs modelled in YANG

• • RESTCONF Services

To view the APIs required to construct the service models in YANG

• In the selected entity, look at the Request parameters that are required to construct the payload and substitute the values in these parameters by using the “Try it out” option available in the Swagger UI.

Notifications Support In ATOM

ATOM supports the following notification definitions

• YANG Notifications

• ATOM ChangeLog Notifications

• Yang Notifications generated by Devices (when they support)

• NAAS Events (Old generation style but still useful)

• ATOM Infrastructure Monitoring Alerts

• Device/Network Monitoring Alerts

Overall, the following transports are supported

• SSE

• Kafka Topics

• Web Sockets

• RabbitMQ

Notification Type And Detail

Notification Type	Notes
YANG Notification	These are the notifications defined in Yang modules and Sub modules, according to YANG 1.1 spec. Notifications defined in ATOM yang modules will be implemented by ATOM. If a user adds their own Yang schema with Notifications, the implementation details need to be supplied along with the Yang Schema. The way to supply the implementation is by defining an ‘ATOM Change Log’ script. See the next item.
ATOM CL Notification (ACLN)	Custom Implementation of ATOM. Although Yang Notification is the prescribed way of defining notification structures, when a client defines a yang notification the logic to generate the notification payload has to be implemented by ATOM development team. It is understood that clients may not always be willing to change yang models to add new notification definitions nor they can wait for ATOM team to implement them. For those scenarios, clients can use the ACLN way of adding notifications. ACLN lets the client To define condition to be matched against the transaction change log To refer to a yang notification or specify a structure/payload of the notification To provide logic to generate the notification ATOM provides access to the change log and utilities. Using this facility, it is possible to extend the notification capabilities of ATOM dynamically.
YANG Notifications generated by Devices	As specified in YANG 1.1 Spec and Restconf Spec. Users can configure ATOM to subscribe for Netconf Notifications generated by devices. On top of it, users can also choose to expose those notifications to the North bound clients via SSE transport.
NAAS Events	Custom Implementation of ATOM. NAAS Event is an old generation style notification but it is still useful.
ATOM Infra monitoring Alerts	Custom Implementation of ATOM. ATOM infra components such as ATOM services, Infra services etc are monitored and alerted when some conditions are met. These alerts can be acted upon in various ways such as emailing, slack channels, invoke workflows, raise tickets etc. And these are published to a kafka topic, so integrators can write consumer logic against these.
Device Monitoring Alerts	Custom Implementation of ATOM If customers enable the Device Telemetry component of their ATOM deployment, devices are monitored and alerted when some conditions are met. These alerts can be acted upon in various ways such as emailing, slack channels, invoke workflows, raise tickets etc. And these are published to a kafka topic, so integrators can write consumer logic against these.

Notification Type, Payload Schema Information

Notification Type	Brief Notes	Schema Type
YANG Notification	As Specified in YANG 1.1 Spec and Restconf Spec	As per YANG 1.1 spec
ATOM CL Notification	Custom Implementation of ATOM	The data structure of the notification itself is as specified by the user. If the notification definition is referring to a yang notification, then, the schema of the payload is driven by yang definition. Otherwise, there is no formal schema for the notification payload. Since this structure is defined by the user (not ATOM platform), they know what to expect as part of the payload.
YANG Notification generated by Devices	As Specified in YANG 1.1 Spec and Restconf Spec	As per YANG 1.1 spec
NAAS Events	Custom Implementation of ATOM	Overall structure is defined as a yang model.
ATOM Infra monitoring Alerts	Custom Implementation of ATOM	Alert structure is defined as a yang model.
Device Monitoring Alerts	Custom Implementation of ATOM	Alert structure is defined as a yang model.

SSE (Server Sent Events) Support

ATOM Supports SSE Transport as specified in the Restconf spec.

Fetching Stream Information

GET /restconf/data/ietf-restconf-monitoring:restconf-state/streams

Sample Output

<streams xmlns=”urn:ietf:params:xml:ns:yang:ietf-restconf-monitoring”> <stream> <name>NETCONF</name> <description>default NETCONF event stream. There are other purpose built streams available.</description> <replay-support>true</replay-support> <access> <encoding>xml</encoding> <location>/streams/NETCONF</location> </access> <access> <encoding>json</encoding> <location>/streams/NETCONF/json</location> </access> </stream> <stream> <name>ACLN</name> <description>event stream to receive changeLog notifications from ATOM.</description> <replay-support>true</replay-support> <access> <encoding>xml</encoding> <location>/streams/ACLN</location> </access> <access> <encoding>json</encoding> <location>/streams/ACLN/json</location> </access> </stream> <stream> <name>TASKS</name> <description>event stream to receive Task updates from ATOM.</description> <replay-support>true</replay-support> <access> <encoding>xml</encoding> <location>/streams/TASKS</location> </access> <access> <encoding>json</encoding> <location>/streams/TASKS/json</location> </access> </stream> <stream> <name>ALARMS</name> <description>event stream to receive ALARM notification from ATOM.</description> <replay-support>true</replay-support> <access> <encoding>xml</encoding> <location>/streams/ALARMS</location> </access> <access> <encoding>json</encoding> <location>/streams/ALARMS/json</location> </access> </stream> </streams>

List of Streams (for a quick glance)

Extracted from the above xml

/streams/NETCONF

/streams/TASKS

/streams/ALARMS

/streams/ACLN

Sample SSE Session

curl -u admin:admin localhost:8080/restconf/streams/stream/NETCONF data:<notification xmlns=”urn:ietf:params:netconf:capability:notification:1.0″><eventTime>2020-01-05T12:33:58.078Z</eventTime><task-id>Fge1AvVq1ORg-VJaWwGKj47A</task-id><report> <notification-spec>$$tasks$$</notification-spec> <anchor-object></anchor-object> <source-datanode>Fge1AvVq1ORg-VJaWwGKj47A</source-datanode> <source-datanode-owner>system</source-datanode-owner> <matcher-type>DEFAULT</matcher-type> <generator-type>DEFAULT</generator-type> <timestamp>2020-01-05T12:33:58.078Z</timestamp></report><task-notification><id>Fge1AvVq1ORg-VJaWwGKj47A</id><status>IN_PROGRESS</status><operation-name><![CDATA[Create: vendor]]></operation-name><starttime>1578227638075</starttime><endtime>0</endtime><message>null</message></task-notification></notification>

ATOM Change Log Reactions

ACLR provides facilities to listen for transaction changes and express reactions to the change.

The reaction can be

• Raise a Notification (We covered this aspect as ATOM Change Log Notification, ACLN)

• Invoke some code (That will run on its own transaction)

• Veto the change (if you need to rollback an on-going transaction based on a condition that is not already modelled)

At a high level, ACLR has the following structure

reaction-definitions { definition { Name; context { anchor-object; change-type; } trigger-condition { // you can use xpath expression , groovy script etc to code the condition } reaction { case notification { notification-object-structure { case yang-notification { yang-notification-identifier; } case custom { notification-structure; // xml/json structure, for ex } } } case veto { message; } case take-action { action-spec // you can call a rpc,action or call a script, workflow etc. } } } }

ATOM System Health & Availability

ATOM System Health, Availability, Performance of various components can be performed using various mechanisms:

• Graphical User Interface – This is documented in “ATOM Deployment Guide”

  • System Alerts can be viewed ATOM End User Interface

  • Advanced Metrics can be viewed using Dashboards in Grafana

• Notifications – Documented in Sections Below

• Polling

  • SNMP

  • HTTP Probe

Notifications

Prometheus Alert Manager will send the notifications about each component’s health and availability whenever the anomalies are found. It is a push mechanism.

To get the alerts in real time, admin has to configure the notification routing and receivers. By Default, ATOM deployment comes with slack and webhook as notification receivers.

To notify alerts to the Slack channel, the user has to provide the slack_api_url. Refer to Sending messages using Incoming Webhooks section in https://api.slack.com/messaging/webhooks to get the unique URL.

The push notifications to any http endpoint, user can add the url under webhook_configs section.

Prometheus Alert Manager can be integrated with the following receivers.

• Slack

• Email

• PagerDuty

• Pushover

• OpsGenie

• Webhook (It accepts any generic http endpoint)

• WeChat

Refer to the below document for more details.

https://prometheus.io/docs/alerting/latest/configuration/#webhook_config

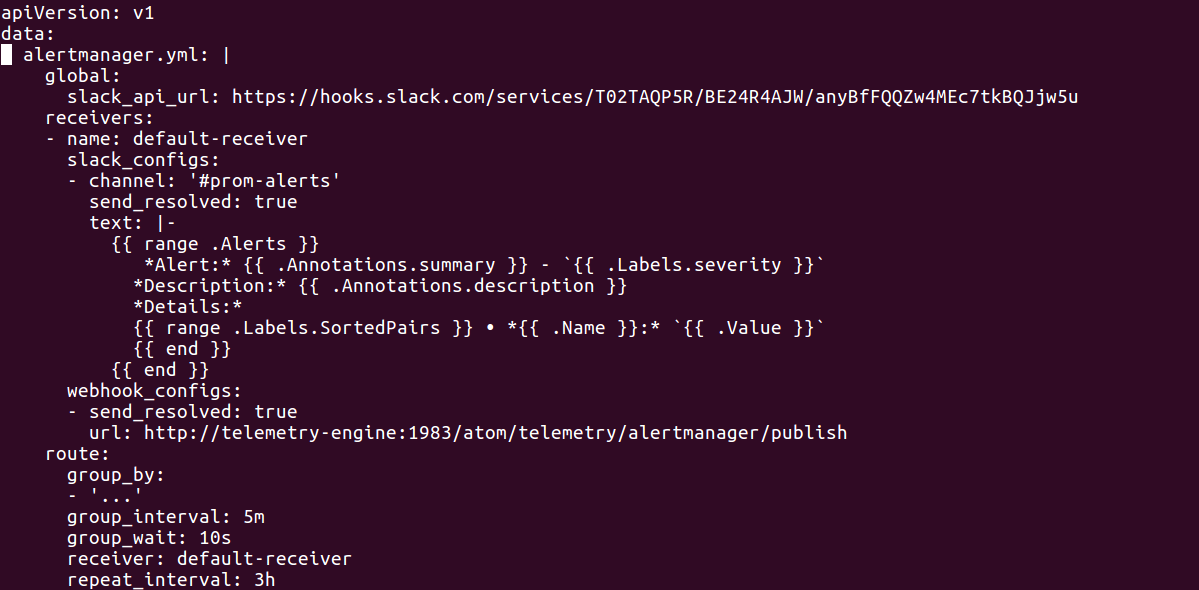

Use k8s dashboard (https://<URL>/k8s/) or login to the k8s master node and execute below command to change the configuration.

kubectl edit cm infra-tsdb-monitoring-alertmanager -n atom

Polling

HTTP Probe

ATOM provides a way to check availability using REST Endpoint. Bearer authentication token as specified in Authentication needs to be provided

GET https://<ATOM_URL>:30443/rest/ui/systemInfo and check for the HTTP status code in response. Status code 200 will indicate that the ATOM is available.

SNMP

ATOM supports SNMP Agent and can be used by OSS Tools to perform Basic Health checks. ATOM Support SNMP Protocol Version SNMPV2c.

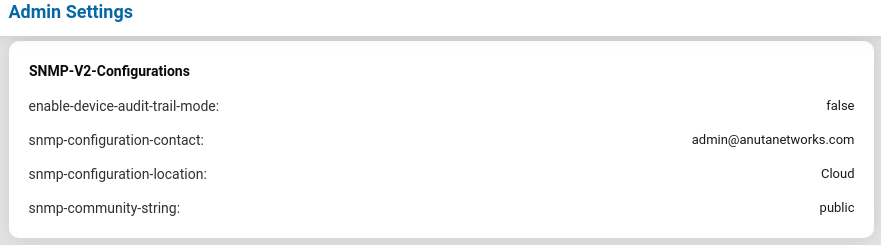

SNMP Access can be enabled in Admin settings from ATOM User Interface – Administration -> System -> General Settings.

Supported MIBs:

• SYSTEM-MIB

  • Supported OIDs:

    • sysDescr

    • sysObjectID

    • sysUpTime

    • sysContact

    • sysName

    • sysLocation

    • sysServices

    • sysORLastChange

  • Sample output for a snmpwalk on the system mib:

# snmpwalk -v2c -c public <atom-ip> .1.3.6.1.2.1.1

sysDescr.0 = STRING: “ATOM, version: 8.7.0.0″

sysObjectID.0 = OID: iso.3.6.1.4.1.42177.1.2

sysUpTime.0 = Timeticks: (1068949) 2:58:09.49

sysContact.0 = STRING: “admin@anutanetworks.com”

sysName.0 = “”

sysLocation.0 = STRING: “Cloud”

sysServices.0 = INTEGER: 72

sysORLastChange.0 = Timeticks: (0) 0:00:00.00
